Material des Werkstücks

Spezifikation und Anwendung

Technische Daten
Klasse	AL550
Auf Lager	Ja
Wie man bestellt	Kontakt
Alle Spezifikationen herunterladen	Herunterladen

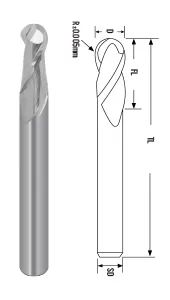

2 Fluten Kugelkopf-Fräser für Aluminium	Best.-Nr.	R (¹/2 D)[mm]	FL[mm]	TL[mm]	SD h6[mm]
	AL550BT2-R0.50	R0.50	2.0	50	4
	AL550BT2-R0.75	R0.75	3.0	50	4
	AL550BT2-R1.00	R1.00	4.0	50	4
	AL550BT2-R1.25	R1.25	5.0	50	4
	AL550BT2-R1.50-D3	R1.50	6.0	50	3
	AL550BT2-R1.50	R1.50	6.0	50	4
	AL550BT2-R1.75	R1.75	7.0	50	4
	AL550BT2-R2.00	R2.00	8.0	50	4
	AL550BT2-R2.50	R2.50	10.0	50	6
	AL550BT2-R3.00	R3.00	12.0	50	6
	AL550BT2-R3.50	R3.50	17.0	60	8
	AL550BT2-R4.00	R4.00	16.0	60	8
	AL550BT2-R5.00	R5.00	20.0	75	10
	AL550BT2-R6.00	R6.00	24.0	75	12
2 Flutes Ball Nose End Mill For Aluminum long shank	Best.-Nr.	R (¹/2 D)[mm]	FL[mm]	TL[mm]	SD h6[mm]
	AL550BTL2-R0.50	R0.50	2.00	75	4
	AL550BTL2-R0.75	R0.75	3.00	75	4
	AL550BTL2-R1.00	R1.00	4.00	75	4
	AL550BTL2-R1.50-D3	R1.50	6.00	75	3
	AL550BTL2-R1.50	R1.50	6.00	75	4
	AL550BTL2-R2.00	R2.00	8.00	75	4
	AL550BTL2-R3.00	R3.00	12.00	75	6
	AL550BTL2-R4.00	R4.00	16.00	75	8
	AL550BTF2-R0.50	R0.50	2.00	100	6
	AL550BTF2-R1.00	R1.00	4.00	100	6
	AL550BTF2-R1.50	R1.50	6.00	100	6
	AL550BTF2-R2.00	R2.00	8.00	100	6
	AL550BTF2-R3.00	R3.00	12.00	100	6
	AL550BTF2-R4.00	R4.00	16.00	100	8
	AL550BTF2-R5.00	R5.00	20.00	100	10
	AL550BTF2-R6.00	R6.00	24.00	100	12
